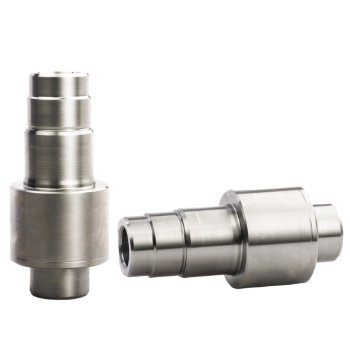

Shafts & pins
Stepped shafts and pins turned and ground to drawing.
SEG-02 · Industry
Railways
Where precision meets challenge: our forged and machined parts are crafted for the rigorous demands of the railway industry, where every part is safety-relevant.
Components we make for railways.
Machined brackets
Brackets and mounting parts with accurate faces and hole positions.
Bushes & sleeves
Precision bushes with controlled bore and outside diameters.
Applications
Where our parts work.
The areas of railways our components go into, and the parts each one uses.
01
Rolling stock
Bogies, brake rigging, suspension and coupler gear
PinsBushesBrackets
02
Track & fastening systems
Track components and fastening equipment
Machined partsBracketsPins
03
Track maintenance machines
Tampers, ballast cleaners and other on-track machines
ShaftsGearsSprockets
04
Workshops & depots
Overhaul equipment, EOT cranes and handling systems
Bearing blocksShaftsCouplings
Parts & materials
Typical parts, materials and what we hold.
Typical grades for guidance. We always follow the material on your drawing.
| Component | Function | Typical materials | Critical features |
|---|---|---|---|
| Pins | Pivots in brake rigging, links and suspension | EN8, EN19, case-hardening steels | Diameter, hardness where specified, finish |
| Bushes & sleeves | Wear surfaces at pivots and joints | EN8, EN353, bronze as specified | Bore and outside diameter fits, concentricity |
| Brackets & housings | Mount and locate equipment | Forged or cast steel | Face flatness, hole positions |
| Shafts | Drives on maintenance machines and auxiliaries | EN19, EN24 | Journal sizes, straightness, keyways |
| Bearing housings | Support rotating shafts | SG iron, cast steel | Bore size and position |
Industry note
Indian Railways inspection
Items for Indian Railways are usually bought against approved drawings and specifications, with inspection by RDSO, RITES or the purchaser's own agency. Mention the specification, drawing revision and inspecting agency in your enquiry so we can plan for it.
What matters
What railway buyers expect from a part.
01
Fatigue life
Parts see millions of load cycles. Material, forging and the finish at every fillet decide how long they last.
02
Batch-to-batch consistency
Spares must be interchangeable across batches and years, so dimensions have to repeat exactly.
03
Documentation
Inspection records tied to each batch, so every part can be traced back to how it was made.
Manufacturing route
From drawing to dispatch.
01
Drawing review
Material, tolerances, quantities and inspection needs checked up front.
02
Blank
Forging, bar or plate, chosen for the strength and size the part needs.
03
Rough machining
Stock removed with allowance left for the final operations.
04
Heat treatment
Hardening, normalising or case hardening, where the drawing specifies it.
05
Finish machining
Bores, journals, faces, keyways, splines and threads brought to final size.
06
Assembly, inspection & dispatch
Assembled if required, checked against the drawing, protected and packed.
Quality
What we check on railway parts.
- Dimensions to drawingEvery critical size checked against the approved drawing and revision.
- HardnessPins and bushes checked where hardness is specified.
- Batch recordsInspection results kept against each batch for traceability.
- Visual and finishSurface condition and protection checked before packing.
FAQ
Common questions.
Can you make parts to RDSO or customer drawings?
Yes. We manufacture to the drawing and specification you send. Tell us the drawing number, revision and inspecting agency.
How do you keep batches consistent?
Fixtures, automation and inspection against the drawing keep dimensions repeatable from batch to batch.
Which materials are typical for railway parts?
Pins and shafts commonly use EN8, EN19 or EN24, and wear parts case-hardening steels such as EN353. We follow the grade on your drawing.
For a quote
What to send us.
The more we know up front, the faster and more accurate the quote.
Related products- DrawingPDF plus DWG, DXF or STEP if you have it. Tolerances, finish symbols and notes help us quote correctly.
- MaterialGrade and standard, and any heat-treatment or hardness requirement.
- QuantityBatch size and expected yearly volume.
- Finish & protectionPainting, coating, rust protection or packing needs.
- InspectionAny reports or documents you need with the delivery.
- DeliveryDelivery location and the date you need the first lot.
Other industries
We also serve.
SEG-01
Steel Plant
High-precision forged and machined parts made for the punishing, ever-changing conditions inside steel plants.
View industrySEG-03
Pump Industries
A proven record in precision manufacturing lets us adapt quickly to the changing needs of a dynamic pump market.
View industrySEG-04
Agriculture
Agricultural spare parts known for consistent quality and availability, built to keep machines in the field.
View industrySEG-05
Hydraulic
Components for efficient, reliable fluid power, from high-pressure pumps to advanced valve systems.
View industrySEG-06
Overhead Crane
Parts for overhead and EOT cranes that load and unload heavy components efficiently, with every safety measure.
View industrySend us the drawing for your railway part.
Our engineers will review it and come back with a manufacturing route and quote.
