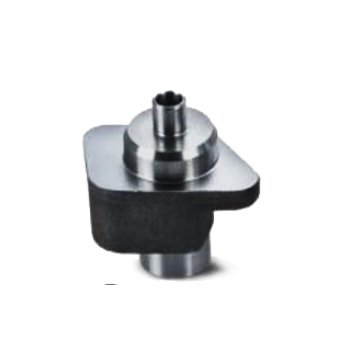

Pump components
Machined parts for hydraulic pumps, made to drawing.
SEG-05 · Industry
Hydraulic
Precision in every drop. Our hydraulic components support efficient, reliable fluid power, from high-pressure pumps to advanced valve systems.
Components we make for hydraulic systems.
Valve bodies
Valve bodies and blocks with accurate port positions.
End caps & glands
Flanged end caps and glands for cylinders.
Precision bushes
Bushes with controlled bores for sliding and rotating parts.
Applications
Where our parts work.
The areas of hydraulic systems our components go into, and the parts each one uses.
01
Hydraulic cylinders
Tie-rod and welded cylinders
End capsGlandsPistonsRod eyes
02
Pumps & motors
Gear, vane and piston units
ShaftsBushesHousings
03
Valves & manifolds
Directional and pressure control
Valve bodiesManifold blocks
04
Power packs
Motor-pump groups and tanks
CouplingsAdapter flanges
Parts & materials
Typical parts, materials and what we hold.
Typical grades for guidance. We always follow the material on your drawing.
| Component | Function | Typical materials | Critical features |
|---|---|---|---|
| End caps & glands | Close the cylinder and guide the rod | EN8, EN9, SG iron | Seal groove size and finish, concentricity |
| Pistons | Separate the pressure chambers | EN8, SG iron | Outside diameter and groove tolerances |
| Rod eyes & clevises | Connect the cylinder to the machine | Forged EN8 or EN19 | Pin bore size, thread |
| Valve bodies & manifold blocks | Route oil between components | EN8, mild steel, SG iron | Port positions, thread form, burr-free bores |
| Bushes | Guide sliding and rotating parts | Bronze, steel | Bore size and finish |
Industry note
Seal grooves follow the seal maker
Groove sizes and surface finish on hydraulic parts usually come from the seal manufacturer's catalogue. Send the seal make and series with your drawing so the grooves match the seals you will fit.
What matters
What hydraulic parts are judged on.
01
Tight tolerances
Fits between moving parts decide leakage and efficiency at pressure.
02
Surface finish
Sealing and sliding faces need the right finish so seals last.
03
Clean, burr-free parts
Burrs and chips damage seals and valves, so parts must leave the shop clean.
Manufacturing route
From drawing to dispatch.
01
Drawing review
Material, tolerances, quantities and inspection needs checked up front.
02
Blank
Forging, bar or plate, chosen for the strength and size the part needs.
03
Rough machining
Stock removed with allowance left for the final operations.
04
Heat treatment
Hardening, normalising or case hardening, where the drawing specifies it.
05
Finish machining
Bores, journals, faces, keyways, splines and threads brought to final size.
06
Assembly, inspection & dispatch
Assembled if required, checked against the drawing, protected and packed.
Quality
What we check on hydraulic parts.
- Seal groovesGroove widths, diameters and corner radii gauged.
- Surface finishSealing and sliding faces checked against the specified finish.
- Threads and portsPort threads and positions gauged.
- Clean and burr-freeParts deburred and cleaned before packing.
FAQ
Common questions.
Can you supply cylinder parts as a set?
Yes. We can supply end caps, glands, pistons and rod eyes together for each cylinder size, made to your drawings.
How do you keep hydraulic parts clean?
Parts are deburred and cleaned before packing, because chips and burrs damage seals and valves.
Which materials are typical?
End caps, glands and pistons commonly use EN8, EN9 or SG iron, and rod eyes forged EN8 or EN19. We follow the grade on your drawing.
For a quote
What to send us.
The more we know up front, the faster and more accurate the quote.
Related products- DrawingPDF plus DWG, DXF or STEP if you have it. Tolerances, finish symbols and notes help us quote correctly.
- MaterialGrade and standard, and any heat-treatment or hardness requirement.
- QuantityBatch size and expected yearly volume.
- Finish & protectionPainting, coating, rust protection or packing needs.
- InspectionAny reports or documents you need with the delivery.
- DeliveryDelivery location and the date you need the first lot.
